Classification of Electric Actuator
Electric actuator can be classified to three types according to output mode as shown below:

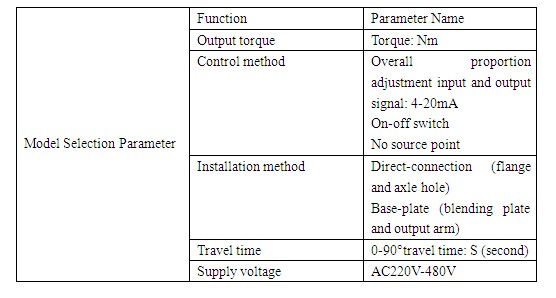

1.Angular Travel Electric Actuator
Effective angle of angular travel electric actuator is 0-90°, to control butterfly valve, ball valve, louver valve, ventilation door, plug valve, etc.

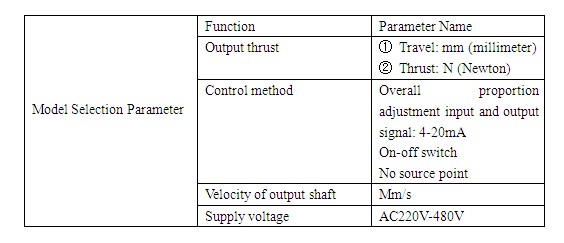

2.Linear travel Electric Actuator:
Linear displacement is output by linear travel electric actuator and linear displacement valve is needed for control, such as single-seated and double-seated regulating valve, high-temperature and high-pressure water supply valve for sleeve valve.

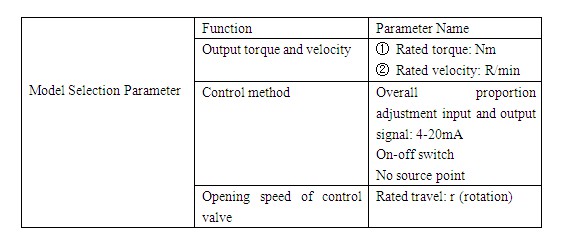

3. Multi-turn Electric Actuator:
Output angle of multi-turn electric actuator exceeds 360°, to control valves which can be opened by turning a lot, such as gate valve and globe valve.
